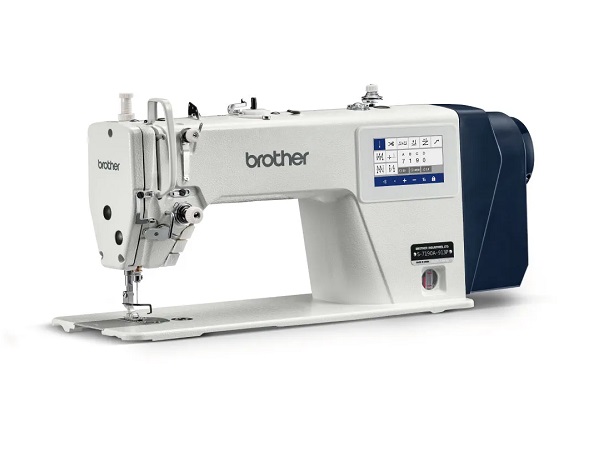

S-7190A
- Single Needle Direct Drive Straight Lock Stitcher with Thread Trimmer,Electric Feeding System and Auto Foot Lifter
- ・Equipped the color LCD touch panel for intuitive operation
- ・Electric Feed System
- ・Short remaining thread
- ・Auto Foot Lifter with electrical knee lifter
- ・Enhances the operability with new Hand Switch・Equipped the Sealed oil tank
Description
Short Remaining Thread, (3.5mm) doesn’t require After-cutting process
The double action thread trimming mechanism cut’s the thread right under the needle hole, realizing the short remaining thread at minimum of 3.5mm. In addition, using the beautiful mode enhances the beautiful sewing end.
Thread Presser Device
This devise helps beautiful seam at the beginning of sewing by pulling the needle thread into bottom side.
Color LCD Touch Panel
The touch panel allows operators to intuitively change settings, and makes it easy to accommodate frequent setting changes.
Digital Stitch Length Control
Digitally controlling stitch length prevents variations due to operators. It can be set with an accuracy of 0.1 mm.
Specifications
| S-7190A | -913P | -915P |
|---|---|---|
| Max. sewing speed | 5,000sti/min | 4,000sti/min |
| Max. stitch length | 5mm | 5mm* |
| Thread trimmer type | Double action thread trimming mechanism | |
| Thread presser | Standard equipment | |
| Hand Switch | Standard equipment | |
| LED light | Standard equipment | |
| Auto foot lifter | Standard equipment | |
| Height of presser foot lifter | 13mm | |
| Needle(DB×1・DP×5) | #11-#18 | #19-#22 |
| Height of feed dog | 0.9mm | 1.2mm |
| Motor | AC servo motor | |
| Weight | 37kg | |
| Power | Single-phase: 200-240V Max. electric power consumption: 400VA |
|
